Description
Feature
Specification
Applications
Resource library

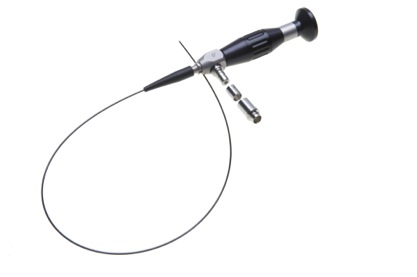

microFlex micro-fibre endoscopes are developed especially for industrial applications with tight inspection apertures or small drill holes. microFlex endoscopes are ideal for inspecting small workpieces, delicate drill holes, injection tubes, turbine blades, random inspection in large series production and security relevant parts. microFlex fibrescopes are available in different configurations with probe diameter from as small as 0.5mm to 1.8mm. All microFlex fibrescopes are available in customer specific working length of up to 2.0m.

探頭 ? 6.0mm
長度 彎曲 DoV
 FoV 像素
1.0m  2 方向 ±120° L/R 0°/90°  60° 12000
1.5m  2 方向 ±120° L/R 0°/90°  60° 12000
2.0m 2 方向 ±120° L/R 0°/90°  60° 12000
2.7m  2 方向 ±120° L/R 0°/90°  60° 12000
1.0m  4-方向 ±100° L/R - 160° UP - 130° DW  0°/90°  60° 12000
1.5m  4-方向 ±100° L/R - 160° UP - 130° DW  0°/90°  60° 12000
2.0m 4-方向 ±100° L/R - 160° UP - 130° DW  0°/90°  60° 12000
2.7m  4-方向 ±100° L/R - 160° UP - 130° DW  0°/90°  60° 12000
探頭 ? 8.0mm 探測
長度 彎曲 DoV
 FoV 像素
1.0m  4-方向 ±100° L/R - 160° UP - 130° DW  0°/90°  60° 12000
1.5m  4-方向 ±100° L/R - 160° UP - 130° DW  0°/90°  60° 12000
2.0m 4-方向 ±100° L/R - 160° UP - 130° DW  0°/90°  60° 12000
2.7m  4-方向 ±100° L/R - 160° UP - 130° DW  0°/90°  60° 12000

編織 :

   多層鎢絲編織

探頭 ?  工作距離 彎曲半徑  DoV FoV 像素  編織
0.5mm

定制設計可達2000mm

min. 20mm  0° 70° 600 PU
0.7mm

定制設計可達2000mm

min. 20mm  0° 70° 600 PU
0.9mm

定制設計可達2000mm

min. 20mm  0° 70° 600 PU
1.2mm

定制設計可達2000mm

min. 20mm  0° 70° 600 PU
1.4mm

定制設計可達2000mm

min. 20mm  0° 70° 10000 PU
1.6mm

定制設計可達2000mm

min. 20mm  0° 70° 10000 PU
1.8mm

定制設計可達2000mm

min. 20mm   0° 70° 10000 PU


探頭 ?  2.4mm
長度 彎曲 DoV
 FoV 像素
0.4m 2 方向 ±120° L/R 0° 45° 6000
1.5m  2 方向 ±120° L/R 0° 45° 6000
2.0m 2 方向 ±120° L/R 0° 45° 6000
2.7m  2 方向 ±120° L/R 0° 45° 6000
探頭 ?  3.5mm
長度 彎曲 DoV
 FoV 像素
0.7m  2 方向 ±120° L/R 0° 50° 8000
1.0m  2 方向 ±120° L/R 0° 50° 8000
1.3m 2 方向 ±120° L/R 0° 50° 8000
1.5m  2 方向 ±120° L/R 0° 50° 8000
探頭 ? 4.0mm
長度 彎曲 DoV
 FoV 像素
1.0m  2 方向 ±120° L/R 0°/90°  60° 11500
1.3m  2 方向 ±120° L/R 0°/90°  60° 11500
1.5m 2 方向 ±120° L/R 0°/90°  60° 11500
2.0m  2 方向 ±120° L/R 0°/90°  60° 11500
